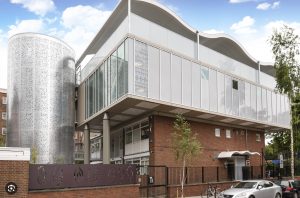

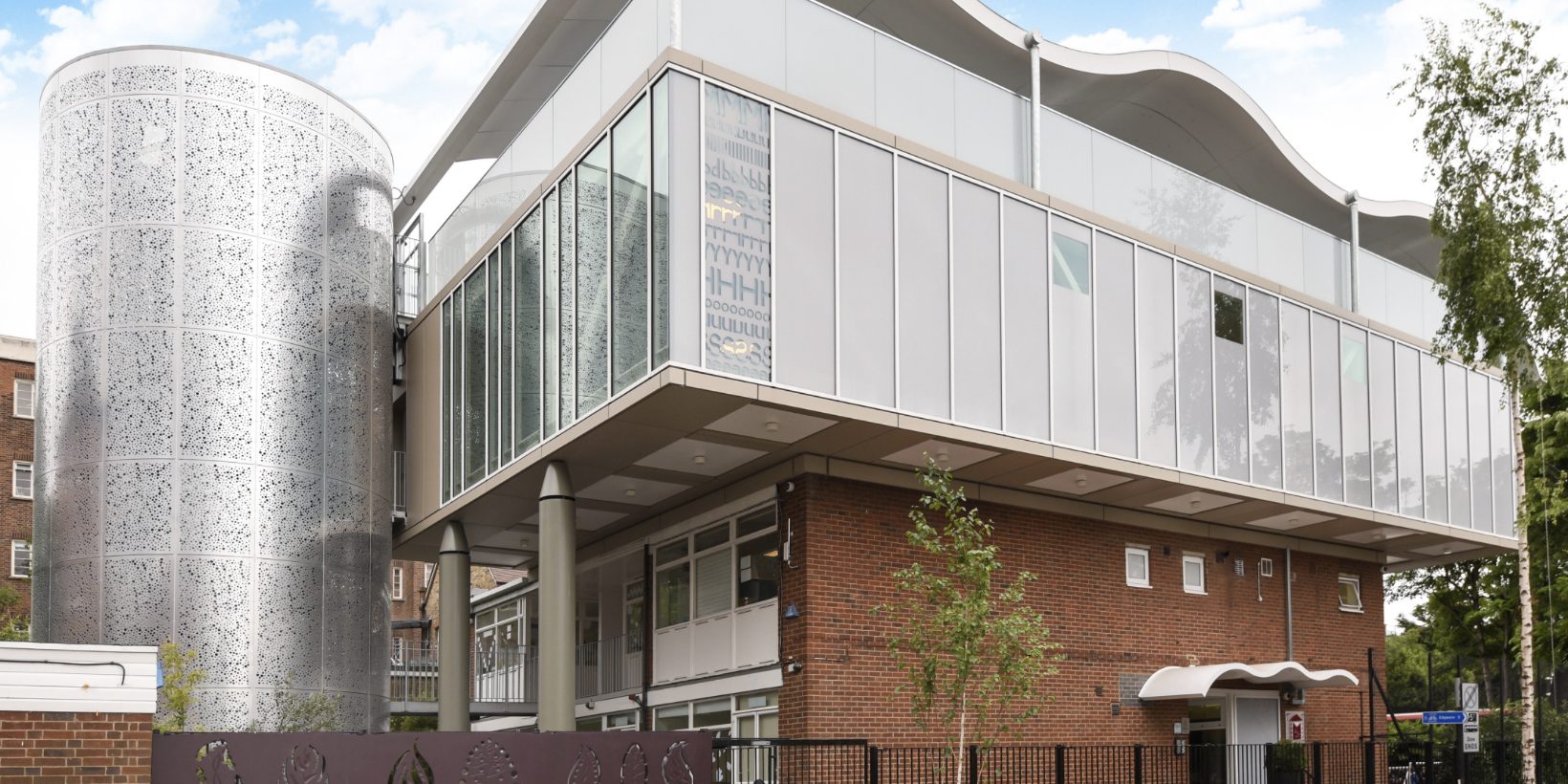

Structural Integrity Assessment of “The Beanstalk” Staircase
Overview
Wilson Architectural Engineering was commissioned to conduct a structural survey of a unique external metal spiral staircase, affectionately nicknamed “The Beanstalk,” at a local school. The primary objective was to evaluate the staircase’s structural integrity, identify any potential concerns, and recommend remedial actions if necessary. This case study outlines the inspection process, findings, and conclusions regarding both “The Beanstalk” and proposed modifications to the school’s toilet facilities.
Inspection Scope and Objectives
The inspection was multifaceted, encompassing an evaluation of “The Beanstalk” staircase’s overall condition, including steps, handrails, structural connections, and protective measures against rust and corrosion. Additionally, in consultation with Mr. Angelos, plans for the expansion of the ground floor toilet facilities were reviewed, assessing the structural implications of drilling through a 4-inch wall for the installation of an additional toilet and sink.
Methodology and Findings
External and Internal Examination of “The Beanstalk”:

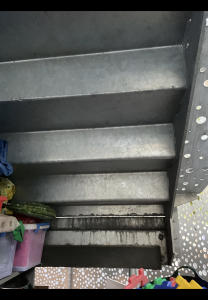

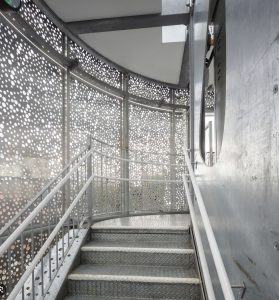

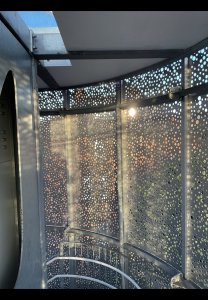

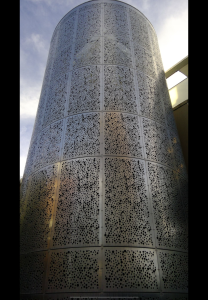

- General Structure: A comprehensive review confirmed the staircase’s excellent condition, with no structural deformations observed.

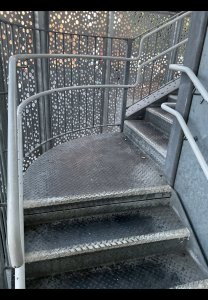

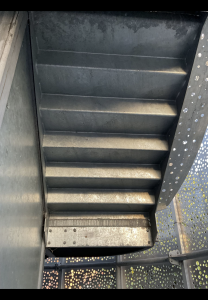

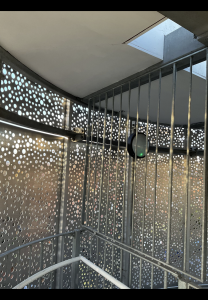

- Steps and Handrails: All components were stable and secure, with no signs of movement.
- Rust and Corrosion: The staircase was free from rust and corrosion, indicative of well-maintained paint and protective coatings.
- Welds and Connections: These critical elements were in excellent condition, ensuring the staircase’s structural integrity.

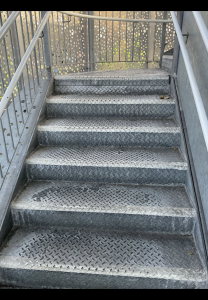

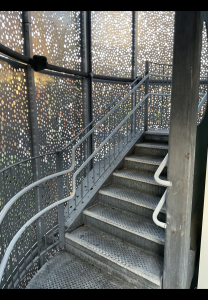

- Anti-Slip Measures and Drainage: Treads were found to be in good condition, and drainage systems were functioning effectively.
Additional Structural Elements:

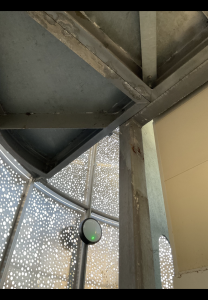

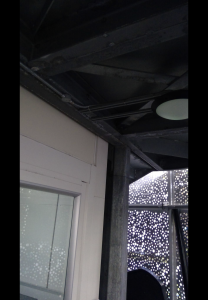

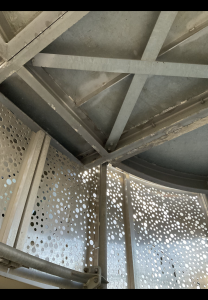

- Galvanized Beams: The framework’s beams, bolts, rivets, and screws were all secure.

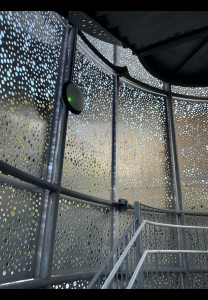

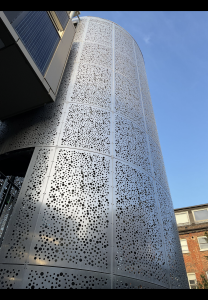

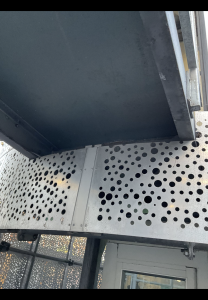

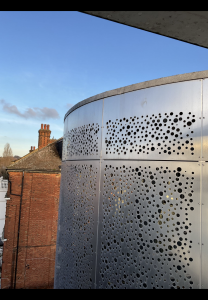

- Decorative Metal Sheeting: Decorative elements were well-attached and intact.
Toilet Facility Expansion:

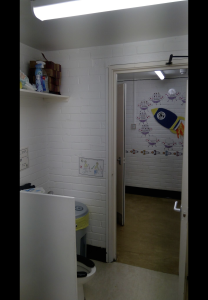

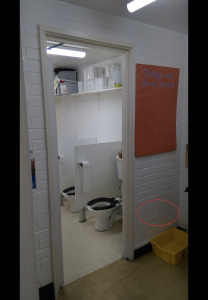

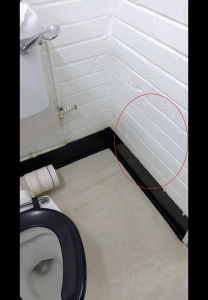

- After evaluating the proposed modifications near the ground floor toilets, it was concluded that the project is feasible with the use of a core cutter for precision drilling, ensuring the structural integrity of the 4-inch wall.
Conclusions and Recommendations
“The Beanstalk” staircase has been meticulously maintained, with no immediate concerns regarding its structural integrity or safety. The inspection revealed that all components, including steps, handrails, and welds, are in excellent condition, with no signs of rust, corrosion, or structural deformations. The protective coatings are intact, contributing to the staircase’s longevity and safety.
For the toilet facility expansion, it was advised that precision drilling techniques be employed to maintain the structural integrity of the existing walls. This approach will facilitate the proposed modifications without compromising the building’s stability.
Project Outcome
Based on the thorough inspection and positive findings, “The Beanstalk” staircase is deemed safe and structurally sound, with no need for remedial work at this time. The consultation process with Mr. Angelos ensured that future modifications to the school facilities could proceed without structural concerns. This project underscores Wilson Architectural Engineering’s commitment to ensuring the safety and integrity of educational infrastructure, contributing to a secure and enhanced learning environment.
